Technical Overview

This documentation is especially meant for developers who want to join our project and for everybody else who would like to know more about the inner workings of AIMSICD. Due to its complexity, this is a work in progress.

Index

• Basic Modules and I/O
• Database Tables: (Current Behavior)
• DEFAULT_MCC_TABLE (Mobile Country Code)
• CELL_TABLE
• LOCATION_TABLE
• OPENCELLID_TABLE
• SILENT_SMS_TABLE
• Database Tables: (New Proposal)
• Accessing the Databases

---

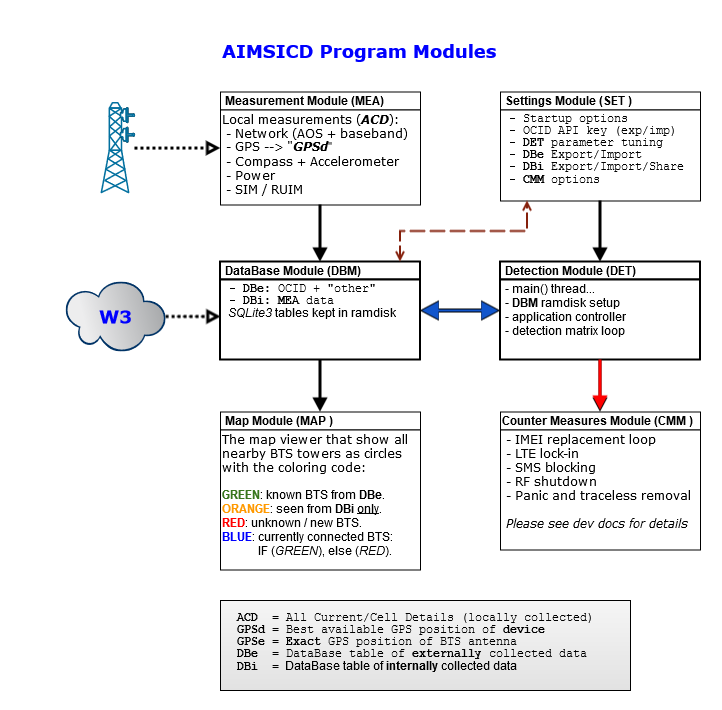

###Basic Modules and I/O:

---

###Database Tables:

One of our awesome developers is currently doing the heavy porting of our databases to Realm.

---

AIMSICD currently utilizes several tables in a single SQLite3 database in aimsicd.db to keep track of all the network changes and the downloaded Open Cell ID (OCID) data. When you're making a file backup of the AIMSICD database, you're actually saving the various tables into individual aimsicd-<tablename>.CSV files, which can be updated manually or externally.

All mentioned sqlite commands are properly documented on the SQLite website.

DEFAULT_MCC_TABLE (Mobile Country Code)

This table holds data to identify your service provider (carrier) and country.

CELL_TABLE

These are the unique BTS towers as collected by the phone, once it has connected to it (ignoring neighboring cells).

LOCATION_TABLE

These are the individual measurements as collected when in Tracking Cell Details mode. The location (Lat/Lng) of the phone and the Cell-ID it is connected to + timestamp.

OPENCELLID_TABLE

Downloaded DB from OpenCellID.

SILENT_SMS_TABLE

Protocol of incoming messages.

---

Accessing the Databases

• From a PC

adb shell
su
sqlite3 /data/data/com.SecUpwN.AIMSICD/databases/aimsicd.db

• From a Terminal Emulator within Android
  • (Note: You may need to install sqlite3 binaries)

su
sqlite3 /data/data/com.SecUpwN.AIMSICD/databases/aimsicd.db

---

To be updated

• CELL_TABLE: Data collected by the phone when it is connected to a cell. (not from the table neighboring cells).
• LOCATION_TABLE: These are the individual measurements as collected when in Tracking Cell Details mode. The location (Lat/Lng) of the phone and the Cell-ID it is connected to + timestamp.

---

Other important details:

We display the Neighboring Cell information in two ways:

1. through telephony manager methods which does not work on Samsung Devices
2. a fallback is available through the methods developed by Alexey (Data is saved in an Array not in an table)

---

Further information about the actual status: Development-Status
