'geom_rug()' prints a warning when 'na.rm = FALSE'

[pn317]

Fixes issue #5905.
When presented with missing values, 'geom_rug()' was not printing a warning message, contrary to the documentation.
A warning message is now printed when 'na.rm = FALSE' and suppressed when 'na.rm = TRUE', as expected.

[teunbrand]

Hi thanks for preparing a PR to fix this!

There is a subtle problem with assigning variables to self with regards to statefulness. While it appears to work fine, like in the plot below;

devtools::load_all("~/packages/ggplot2/") # copied from your PR
#> ℹ Loading ggplot2

GeomRug$required_aes # empty
#> character(0)

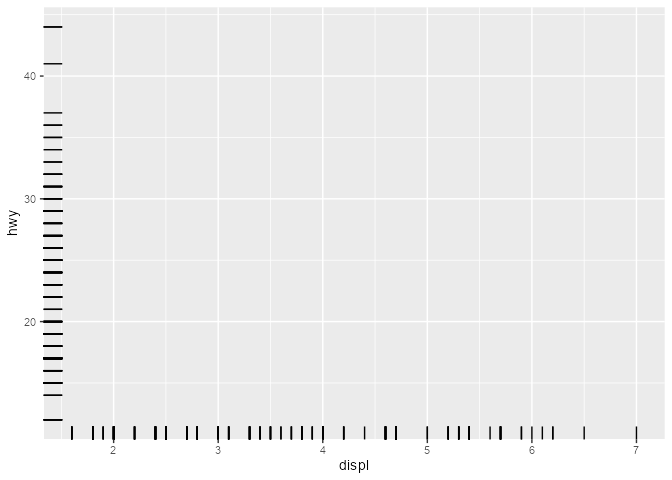

ggplot(mpg, aes(displ, hwy)) +
  geom_rug()

What it actually does is to modify the global state of GeomRug to now have both x and y as required aesthetics. This will crash a subsequent plot wherein only one of the two is needed.

GeomRug$required_aes # populated
#> [1] "x" "y"

ggplot(mpg, aes(displ)) +
  geom_rug()
#> Error in `geom_rug()`:
#> ! Problem while setting up geom.
#> ℹ Error occurred in the 1st layer.
#> Caused by error in `compute_geom_1()` at ggplot2/R/ggproto.R:190:17:
#> ! `geom_rug()` requires the following missing aesthetics: y.

^{Created on 2024-05-23 with reprex v2.1.0}

I think the solution to this will be to make a new GeomRug$handle_na() method, that computes the correct required_aes locally (without assigning it to self) and passes that on remove_missing().

[pn317]

@teunbrand thanks for pointing that out. I had missed that when testing because I was just alternating between

ggplot(mtcars2, aes(x = wt, y = mpg)) +
  geom_point() +
  geom_rug(sides = "b")

which (rightly) doesn't warn, because there are no NAs in wt, and

ggplot(mtcars2, aes(x = wt, y = mpg)) +
  geom_point() +
  geom_rug(sides = "l")

which does warn (with my fix) and seems to be happy by dumb luck because I am still providing both x and y aesthetics.

I will push a new commit to adapt handle_na() instead, as you suggest.

[teunbrand]

Yeah this looks great, thanks! Is there any way I could convince you to add a small test that simply checks that the warning is emitted when there is missing data?

[pn317]

You can convince me! I'll add that shortly

[teunbrand]

OK the following is my fault for not noticing in the first place, but I think there is an issue with removing rows where x or y are missing.

So with the current way things work, a missing y still renders the rug for the x that is present:

library(ggplot2)

df <- data.frame(x = 1:2, y = c(1, NA))

ggplot(df, aes(x, y)) +
  geom_rug()

However, when we start removing missing values, we also remove rows that are semi-complete. Notice how x = 2 no longer drawn with this approach.

devtools::load_all("~/packages/ggplot2") # this PR
#> ℹ Loading ggplot2

ggplot(df, aes(x, y)) +
  geom_rug()
#> Warning: Removed 1 row containing missing values or values outside the scale range
#> (`geom_rug()`).

^{Created on 2024-05-24 with reprex v2.1.0}

So I think the correct approach is to only drop rows where x and y are missing if drawing both directions, and only the relevant aesthetic when the rug is drawn in one direction. I'd be happy to help out if this is becoming too complicated.

[pn317]

@teunbrand -- sorry for the slow reply; I have been away from work for a bit. I'll have a go at doing something useful and shout if things are getting too complicated. Thanks for the support.

[teunbrand]

ggplot2 doesn't use dplyr (it is in suggests because of some cross-functionality).
I think a similar thing could be achieved by using vec_set_union() from {vctrs}.

[pn317]

Thanks - I have updated this as suggested

[teunbrand]

I think this should be accompanied by a bump of the suggested {testthat} version to 3.1.5

[pn317]

Done!

[teunbrand]

Great, thank you the contribution and entertaining the suggestions!
I think this should be good to go, but if you want you can add your github handle to the news bullet.

[pn317]

Thanks very much. I've updated the NEWS bullet as suggested.

[teunbrand]

Thanks again!
